MODEL 35 (35m²)
netto
19995,00
€
COMPLETENESS OF MANUFACTURING - BASIC:
Timber Frame Modular House for Year-Round Living.
The total area of the house 35 m².
External dimensions: width - 3.4 (3,55) m; length - 10.29 (10,4) m; height - 3.2 (3,3) m
Internal dimensions: width - 2.84 m; length - 9.86 m; height from 2.35 m to 2.72 m
Number of modules: one complete module
Roof: single-pitched
Frame: dried calibrated timber beam, treated with bioprotection
Insulation: basalt wool (150 mm - walls, 200 mm - ceiling and floor)
Electrical wiring: copper.
Electricity supply system (internal wiring), PL:
PVC lead-in cable 5*6 mm2 in plastic corrugated pipe.
Maximum lead-in cable load 11 kW. Internal wiring for sockets with PVC-insulated copper wire cable (VVB) 3 * 2.5 mm2 in plastic corrugated pipe behind the drop ceiling and in the partition walls. Maximum load 6 kW. Internal wiring for lighting with PVC-insulated copper wire cable (VVB) 3*1.5 mm2 (or parallel-core common-sheath PVC-insulated cable 3*1 and 2*1 mm2). In plastic corrugated pipe behind the drop ceiling and in the partition walls, maximum load 3.5 kW. One internal electric service panel for 24 modules. Maximum load 11 kW.
Flooring: laminate/semi-commercial linoleum
Bathroom flooring: commercial linoleum
Windows: two-chamber metal-plastic, with external lamination, energy-saving
Doors: entrance and interior Standard +
Furnishing: LED light fixtures - 10 pcs., switches, sockets - 18 pcs., outdoor lighting - facade lamp - 2 pcs.
Bathroom: Shower stall 90\90 (random, depending on stock availability), Toilet bowl CERSANIT, Boiler 80l ATLANTIC , water supply and discharge for the washing machine, water discharge and sewerage for the washbasin
Exterior wall finish: pine spruce false timber or profiled metal
Interior finish of walls and ceilings: pine lining boards or MDF boards
Heating system: electric, power outlets under the windows without electric convection heaters
The term of making a modular house is 4 weeks.
Today, the queue for the start of production of the current order is 2 months.
The price does not include: delivery, foundation, external utility systems, truck crane for unloading.
Timber Frame Modular House for Year-Round Living.
The total area of the house 35 m².
External dimensions: width - 3.4 (3,55) m; length - 10.29 (10,4) m; height - 3.2 (3,3) m
Internal dimensions: width - 2.84 m; length - 9.86 m; height from 2.35 m to 2.72 m
Number of modules: one complete module
Roof: single-pitched
Frame: dried calibrated timber beam, treated with bioprotection
Insulation: basalt wool (150 mm - walls, 200 mm - ceiling and floor)
Electrical wiring: copper.
Electricity supply system (internal wiring), PL:
PVC lead-in cable 5*6 mm2 in plastic corrugated pipe.
Maximum lead-in cable load 11 kW. Internal wiring for sockets with PVC-insulated copper wire cable (VVB) 3 * 2.5 mm2 in plastic corrugated pipe behind the drop ceiling and in the partition walls. Maximum load 6 kW. Internal wiring for lighting with PVC-insulated copper wire cable (VVB) 3*1.5 mm2 (or parallel-core common-sheath PVC-insulated cable 3*1 and 2*1 mm2). In plastic corrugated pipe behind the drop ceiling and in the partition walls, maximum load 3.5 kW. One internal electric service panel for 24 modules. Maximum load 11 kW.
Flooring: laminate/semi-commercial linoleum
Bathroom flooring: commercial linoleum
Windows: two-chamber metal-plastic, with external lamination, energy-saving
Doors: entrance and interior Standard +
Furnishing: LED light fixtures - 10 pcs., switches, sockets - 18 pcs., outdoor lighting - facade lamp - 2 pcs.
Bathroom: Shower stall 90\90 (random, depending on stock availability), Toilet bowl CERSANIT, Boiler 80l ATLANTIC , water supply and discharge for the washing machine, water discharge and sewerage for the washbasin
Exterior wall finish: pine spruce false timber or profiled metal
Interior finish of walls and ceilings: pine lining boards or MDF boards
Heating system: electric, power outlets under the windows without electric convection heaters
The term of making a modular house is 4 weeks.
Today, the queue for the start of production of the current order is 2 months.
The price does not include: delivery, foundation, external utility systems, truck crane for unloading.
ADDITIONAL OPTIONS (HIGHER CONSUMER CLASS)
IS CALCULATED ON REQUEST
Façade finishing
1. Thermowood, pine, false timber 12 cm. For information, on average – 3910,00 €.
2. Thermowood, pine, strips 4 cm + base – bakelite panel
Metal tile roofing. For information, on average – 420,00 €.
Rainwater system
Available. For information, on average – 510,00 €.
Windows and doors
1. Double-sided lamination
2. Profiles KÖMMERLING 76 (Germany)
3. Aluminum profiles
Thermal insulation IZOVAT
External walls - 200 mm. For information, on average – 1100,00 €.

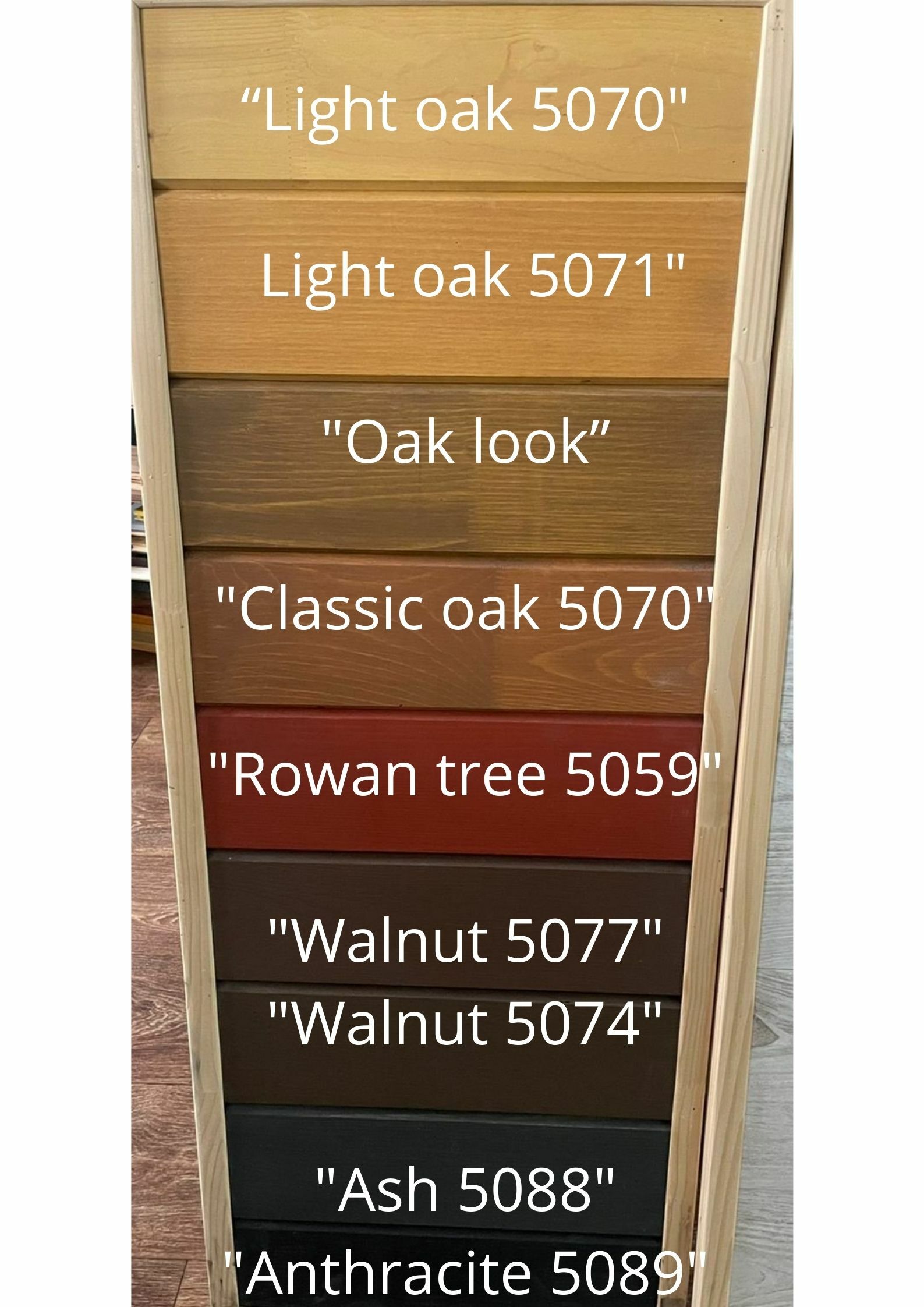

Colour of painting of interior finishing of rooms
1. Colour of natural flaxseed oil
2. Mix of several colours in one room
3. Solid white with special preparation
Bathroom
1. Shower stall Radaway premium. For information, on average – 500,00 €.
2. Toilet bowl GEBERIT. For information, on average – 700,00 €.
3. Shower mixer GROHE. For information, on average – 110,00 €.
4. Washbasin cabinet CERSANIT. For information, on average – 330,00 €.
5. Bathtub
Wall base
Wooden high. For information, on average – 310,00 €.
Bottom of the house
Bakelite plywood 12 mm. For information, on average – 1260,00 €.
Room flooring
1. Laminate - individual choice
2. Vinyl - individual choice
3. Ceramic tiles
Flooring in the bathroom
1. Ceramic tiles – individual choice
2. Vinyl - individual choice
Ceiling finishing in the bathroom
Plasterboard + coating + vlies + walls painting. For information, on average – 450,00 €.
Interior doors
Higher consumer class. For information, on average - price range from 100,00 €/unit.
Dishwasher
1. Dishwasher is not available, just preliminary works:
additional inlet connector for dishwasher water supply end additional outlet connector for dishwasher wastewater disposal - for information, on average – 100,00 €.
2. Dishwasher - individual choice.
Air conditioner
1. Air conditioner is not available, just preliminary works:
- Embedded items + cable routing in the wall (a set of hoses and wires) - for information, on average – 260,00 €.
- Air conditioner installation;
- Recuperator.
2. Air conditioner - individual choice.
Electricity supply system (internal wiring), DE
Lead-in cable NYM -J 5*16 mm2 in plastic corrugated pipe.
Maximum lead-in cable load 38 kW. Internal wiring for sockets with cable NYM -J 3*2.5 mm3 in plastic corrugated pipe behind the drop ceiling and in the partition walls. Maximum load 6 kW.
Internal wiring for lighting with cable NYM -J 3*1.5 mm2 in plastic corrugated pipe behind the drop ceiling and in the partition walls, maximum load 3.5 kW.
One internal electric service panel for 36 modules (2 residual cut-off devices (RCD): incoming line and for direct-flow water heater). Maximum load 38 kW, - for information, on average – 805,00 €.
Number of sockets
Additional socket – 30,00 €.
Number of LED lamps
Optional LED light fixture – 30,00 €.
Additional facade light fixture – 100,00 €.
Extra ground wire – 90,00 €.
Heating system
1. Floor heating in rooms - for information, on average – 730,00 €.
2. Floor heating in the bathroom - for information, on average – 380,00 €.
Terrace
1. Bottom side - for information, on average – 190,00 €/m².
2. Roof - for information, on average – 260,00 €/m².
Mounting hardware
Self-tapping screws stainless steel - for information, on average – 147,00 €.
Insurance during transportation
On average, one MODULE – 210,00 €.
Fireplace
1. Fireplace is not available, just preliminary works:
a. Wall/ceiling hole - for information, on average – 450,00 €.
b. Fire resistant plasterboard + tile on wall/floor/ceiling; for information, on average – 1725,00 €.
c. Metal sheet on the ceiling above the fireplace area - for information, on average – 405,00 €.
d. Additional power socket (if the fireplace is electric) - for information, on average – 30,00 €.
2. Fireplace - individual choice.
Additional waterproof finish in the bathroom
FLOOR: additional waterproofing membrane, polyurethane protective tape, cement-bonded particleboard - for information, on average – 350,00 €/m².
WALLS: water-resistant plasterboard
Roof strengthening for solar panels
For information, on average – 508,00 €.
Solar collector
Solar collector - individual choice.
Painting of inner joints of lining boards
For information, on average – 220,00 €.
Solar hot water tank
1. Solar hot water tank is not available, just preliminary works:
Mounting supports for tank fitting
Water inlets and connections
2. Solar hot water tank - individual choice.
Four weekly photoreports (5 photos each), starting from the first week of manufacturing
20 photos - how your house is being manufactured. If the process of modular house production is speeded up, the number of photoreports and the total number of photos will be reduced accordingly, without the repayment of difference in the cost - 100,00 €.
IS CALCULATED ON REQUEST
Façade finishing
1. Thermowood, pine, false timber 12 cm. For information, on average – 3910,00 €.
2. Thermowood, pine, strips 4 cm + base – bakelite panel
3. Decorative inserts of composite material aluminium + plastic
RoofingMetal tile roofing. For information, on average – 420,00 €.
Rainwater system
Available. For information, on average – 510,00 €.
Windows and doors
1. Double-sided lamination
2. Profiles KÖMMERLING 76 (Germany)
3. Aluminum profiles
Thermal insulation IZOVAT
External walls - 200 mm. For information, on average – 1100,00 €.
Colour of painting of interior finishing of rooms
1. Colour of natural flaxseed oil
2. Mix of several colours in one room
3. Solid white with special preparation
Bathroom
1. Shower stall Radaway premium. For information, on average – 500,00 €.
2. Toilet bowl GEBERIT. For information, on average – 700,00 €.
3. Shower mixer GROHE. For information, on average – 110,00 €.
4. Washbasin cabinet CERSANIT. For information, on average – 330,00 €.
5. Bathtub
Wall base
Wooden high. For information, on average – 310,00 €.
Bottom of the house
Bakelite plywood 12 mm. For information, on average – 1260,00 €.
Room flooring
1. Laminate - individual choice
2. Vinyl - individual choice
3. Ceramic tiles
Flooring in the bathroom
1. Ceramic tiles – individual choice
2. Vinyl - individual choice
Ceiling finishing in the bathroom
Plasterboard + coating + vlies + walls painting. For information, on average – 450,00 €.
Interior doors
Higher consumer class. For information, on average - price range from 100,00 €/unit.
Dishwasher
1. Dishwasher is not available, just preliminary works:
additional inlet connector for dishwasher water supply end additional outlet connector for dishwasher wastewater disposal - for information, on average – 100,00 €.
2. Dishwasher - individual choice.
Air conditioner
1. Air conditioner is not available, just preliminary works:
- Embedded items + cable routing in the wall (a set of hoses and wires) - for information, on average – 260,00 €.
- Air conditioner installation;
- Recuperator.
2. Air conditioner - individual choice.
Electricity supply system (internal wiring), DE
Lead-in cable NYM -J 5*16 mm2 in plastic corrugated pipe.
Maximum lead-in cable load 38 kW. Internal wiring for sockets with cable NYM -J 3*2.5 mm3 in plastic corrugated pipe behind the drop ceiling and in the partition walls. Maximum load 6 kW.
Internal wiring for lighting with cable NYM -J 3*1.5 mm2 in plastic corrugated pipe behind the drop ceiling and in the partition walls, maximum load 3.5 kW.
One internal electric service panel for 36 modules (2 residual cut-off devices (RCD): incoming line and for direct-flow water heater). Maximum load 38 kW, - for information, on average – 805,00 €.
Number of sockets
Additional socket – 30,00 €.
Number of LED lamps
Optional LED light fixture – 30,00 €.
Additional facade light fixture – 100,00 €.
Extra ground wire – 90,00 €.
Heating system
1. Floor heating in rooms - for information, on average – 730,00 €.
2. Floor heating in the bathroom - for information, on average – 380,00 €.
Terrace
1. Bottom side - for information, on average – 190,00 €/m².
2. Roof - for information, on average – 260,00 €/m².
Mounting hardware
Self-tapping screws stainless steel - for information, on average – 147,00 €.
Insurance during transportation
On average, one MODULE – 210,00 €.
Fireplace
1. Fireplace is not available, just preliminary works:
a. Wall/ceiling hole - for information, on average – 450,00 €.
b. Fire resistant plasterboard + tile on wall/floor/ceiling; for information, on average – 1725,00 €.
c. Metal sheet on the ceiling above the fireplace area - for information, on average – 405,00 €.
d. Additional power socket (if the fireplace is electric) - for information, on average – 30,00 €.
2. Fireplace - individual choice.
Additional waterproof finish in the bathroom
FLOOR: additional waterproofing membrane, polyurethane protective tape, cement-bonded particleboard - for information, on average – 350,00 €/m².
WALLS: water-resistant plasterboard
Roof strengthening for solar panels
For information, on average – 508,00 €.
Solar collector
Solar collector - individual choice.
Painting of inner joints of lining boards
For information, on average – 220,00 €.
Solar hot water tank
1. Solar hot water tank is not available, just preliminary works:
Mounting supports for tank fitting
Water inlets and connections
2. Solar hot water tank - individual choice.
Four weekly photoreports (5 photos each), starting from the first week of manufacturing
20 photos - how your house is being manufactured. If the process of modular house production is speeded up, the number of photoreports and the total number of photos will be reduced accordingly, without the repayment of difference in the cost - 100,00 €.
